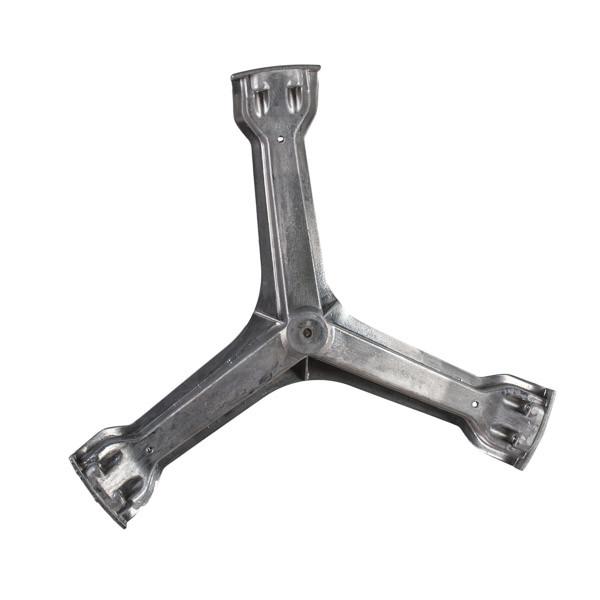

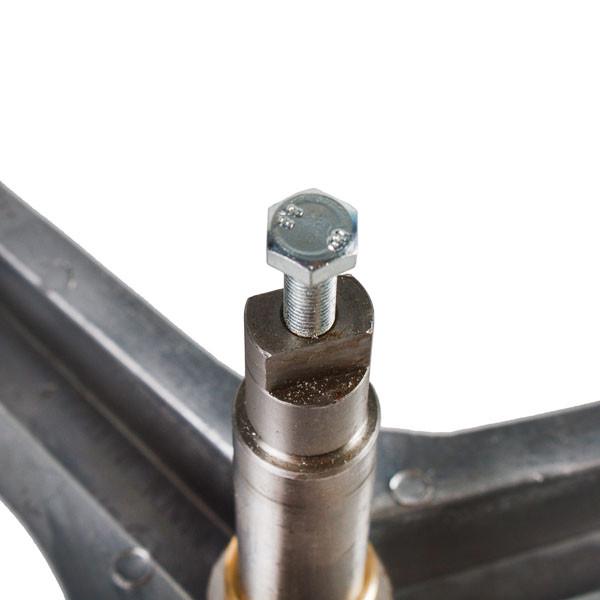

Крестовина барабана EBI COD.072 для стиральной машины Electrolux 108 мм М8 (00000036404)

Крепление шкива: М8

Расстояние от оси вала до оси крепления барабана, mm: 235

Расстояние между подшипниками, mm (±1 mm): 64

Диаметр втулки под сальник, mm (±0,3 mm): 30

Вид запчасти: Крестовина и опорные узлы

Длина вала, mm (±2 mm): 108

Диаметр посадки подшипника 2, mm (±0,3 mm): 25

Высота лыски, mm (±1 mm): 11

Диаметр посадки подшипника 1, mm (±0,3 mm): 20

Высота втулки под сальник, mm (±1 mm): 15

Крепление к барабану: М8

Подшипники: 6204, 6205

СОВМЕСТИМОСТЬ

L10500VI, L10500VI, L10500VI, LAV103, LAV105, LAV106, LAV115, LAV95, LAV97, LAVAMAT102, LAVAMAT2102, LAVAMAT2106, AW1015L, AW1029F, AW1035S, AW1046F, AW1046F, AW1059F, AW1075S, AW1085S, AW946F, AW975B, AW975W, AWF102, LS1194, EW1000I, EW1000I, EW1000W, EW1000W, EW1003W, EW1003W, EW1005F, EW1006F, EW1006F, EW1007F, EW1010F, EW1010F, EW1014I, EW1015F, EW1025F, EW1050F, EW1055F, EW1062W, EW1062W, EW1062W, EW1062W, EW1100F, EW1134F, EW914F, EWF1000, EWF10020W, EWF10040W, EWF10049W, EWF10049W, EWF1005, EWF10140W, EWF1020, EWF1020, EWF10240W, EWF1028, EWF1028, EWF1029, EWF1030, EWF1030, EWF1040, EWF1040, EWF1050, EWF1050, EWF1060, EWF1090, F1045W, KT202-5, KT2027, KT2027, KT2027, L10500VI, L10500VI, L510, LI100E, LI101JE, QUARZOII, QUARZOII, R100A, R100A, RWF10049W, TF1003, TF1021E, TF1027, TF1028, TF1029, TF1037, TF1038, TF1039, TF1040, W1042W, WH3430H, ZWF1000, ZWF1010W, ZWF1020W, WA100X, WA101, 000269 1, 00735761_21225, 016953 2, 017039 9, 022023 6, 022023 6, 025026_6782, 052696 2, 052697 0, 052698 8, 053392 7, 053392 7, 053395 0, 053414 9, 053697 9, 062377 9, 062380 1, 062381 9, 062381 9, 073535_20937, 094920_20201, 099.169 5, 099169 5, 152305 9, 217342_20791, 243448_8437, 254057_21227, 391128, 582603_20225, 744025_8383, LI101JE, RL9IV, RLA10, RLE10J, CF2061, KWG3100, SF2000, CAW1010, F1001V, F1002V, F1005, F1005, F1006, F1045W, F1046, F1046, FA1023, FA1026HYDR, FA1032, FA1032, FAE1025V, FAE1025V, FAE1025V, FAE1025V, FE1002, FE1004, FE1006, FE1006, FI1073, FJ1033, FJ1040, FJ1053, FJ1093, FJ1093CV, FJ1094, FJ1094, FJ1094AL, FJ1094G, FJ1104, FJ903CV, FJD1084HV, FJS1004C, FJS1004C, FJS1072HV, FJS1074C, FJS1074C, FJS1084C, FJS1197W, FL1004V, FL1011C, FL1011C, FL1014V, FL1014V1, FL1022C, FL1025, FL1030, FL1032, FL1034, FL1081, FL1082, FL1084, FL1084AL, FL1085, FL1085, FL900 AMIE, FL900AMIE, FLA1001W, FLA1001W, FLA1002W, FLD1000, FLD884V, FLD884VM, FLF1022, FLF1242, FLI1003, FLN1007, FLN1021, FLN1060, FLN1074, FLS1002V, FLS1002V, FLS1012C, FLS1014C, FLS1021HC, FLS1022, FLS1022, FLS1022CH, FLS1024C, FLS1042, FLS1054C, FLS1064C, FLS1072, FLS1072C, FLS1072CH, FLS1072CH, FLS1072CH, FLS1074, FLS1074C, FLS1074HC, FLS1076C, FLS1076S, FLS1082, FLS1084, FLS1084, FLS1084, FLS1084, FLS1086, FLS1092, FLS1092, FLS1183W, FLS1185QAL, FLS1185QW, FLS1186W, FLS1222, FLS872V, FLS972V, QUARZO II, W1042W, WD1002, WD1222V, WDJ1012, WDJ1054, WDJ1094, WDJ1094, WDJD1082, WDS1002C, WDS1072, WDS1072, WDS1072, WDS1072, WDS1072C, WDS1072C, WDS1092, WDS1092, WDS1183W, WDT1075, WDT1075, WDT1085, WDT1085, WI1018N, WIJ1074, WIJ1075, WJS1197W, Z1008, Z1020, Z6131 SUPERINOX, ZT1014, ZT102, ZT102, ZT1022, ZT1082, ZTI1023, ZTI1029, ZTI1029, ZWD5105, ZWD5106, ZWD6105, ZWD7105, ZWF1000, ZWF1026, ZWF1038, ZWF3102, ZWF3102, ZWF3105, ZWF5105, ZWF5105, ZWG3102
