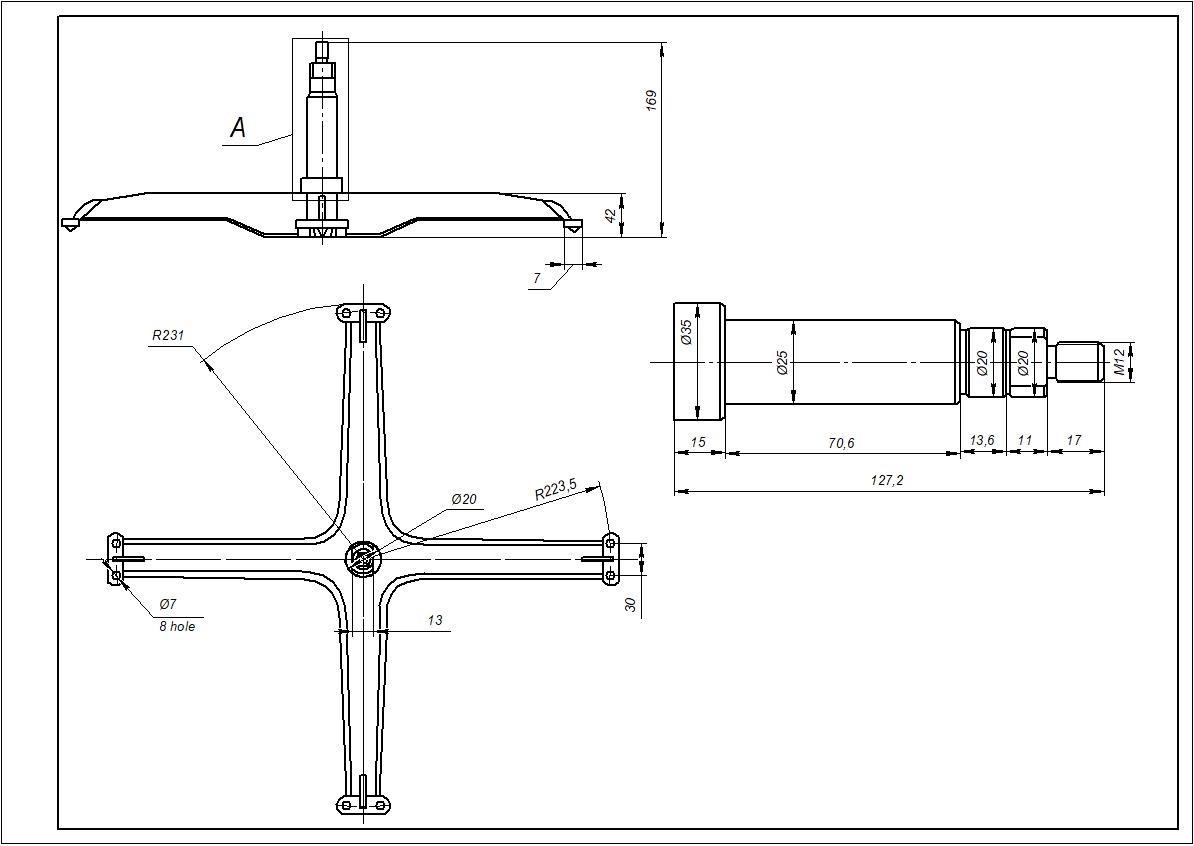

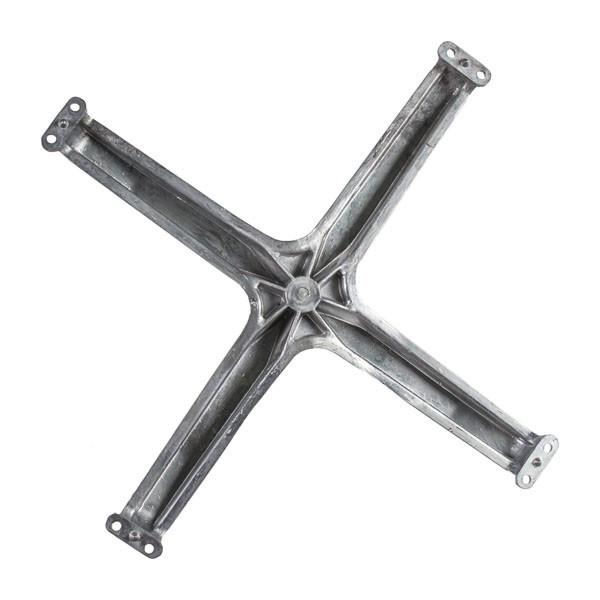

Крестовина барабана EBI 024 127 мм для стиральной машины Ardo

Крепление шкива: М12

Расстояние от оси вала до оси крепления барабана, mm: 224

Расстояние между подшипниками, mm (±1 mm): 70

Диаметр втулки под сальник, mm (±0,3 mm): 35

Вид запчасти: Крестовина и опорные узлы

Длина вала, mm (±2 mm): 127

Диаметр посадки подшипника 2, mm (±0,3 mm): 25

Высота лыски, mm (±1 mm): 12

Диаметр посадки подшипника 1, mm (±0,3 mm): 20

Высота втулки под сальник, mm (±1 mm): 15

Крепление к барабану: 7,2 mm

Подшипники: 6204, 6305

СОВМЕСТИМОСТЬ

A1000, A1200, A1200X, A1200XCZ, A1200XPL, A1200XPL, A1400, A1400X, A600, A6000X, A600X, A800, A800PL, A800PL, A800XCZ, A800XPL, A804, A810PL, A814, A814, AE1200XCZ, AE1200XPL, AE800X, AE800X, AE800XCZ, AE800XPL, AE810, AE810CZ, AE810PL, AE810PL, AED1000, AED1000X, AED1200X, AED1200XPL, AED800X, AED800XPL, AED810, ANNA600, ANNA800, DELUXEAED1200XCZ, DELUXEAED800XCZ, FL85SX, FL85SX, FL85SX-N, FL85SX-N, FLI120L, FLI120L, FLI120L-N, FLI120L-N, FLI80S-N, FLI80S-N, S1000, S1000X, SE1010, SE810, WD1000, WD1000X, WD1200XPL, WD1200XPL, WD800, WD800CZ, WD800LPL, WD800X, WD800XPL, WD80L, WD80L-N, WDI120L, WDI120L-N, LF 1000 ATX, LF 454 TX, LF 455 TX, LF 800 ATX, LF654T, LF654T, LF800ATX, LF800ATX, AWG 337, AWG 837-1, AWG337, AWG8371, AWL 3888, AWL 445 W, AWL 449-W-IG, AWL 451-IG, AWL 451/W, AWL 452 AWL 452/W IG, AWL 452-IG, AWL 454 W, AWL 454-IG, AWL 495 F, AWL 500, AWL 500, AWL 549 IG, AWL 550, AWL 550 WH, AWL 560, AWL 616 F, AWL 643, AWL 643, AWL 643, AWL 643/1, AWL 643/1, AWL 643/2, AWL 644, AWL 644, AWL 645, AWL 645, AWL 645/1, AWL 785/WH, AWL 786 F, AWL445W, AWL449WIG, AWL451IG, AWL451W, AWL452AWL452WIG, AWL452IG, AWL454IG, AWL454W, AWL459 AWL 459/WH, AWL459AWL459WH, AWL495F, AWL500, AWL500, AWL500LWASHINGMACHINESIG, AWL549IG, AWL550, AWL550WH, AWL560WASHERDRYERSIG, AWL616F, AWL643, AWL643, AWL643, AWL6431, AWL6432WASHERDRYERSIG, AWL644, AWL644, AWL645, AWL645, AWL6451, AWL785WH, AWL786F, LOP 100, LOP 100, LOP100, LOP100, WD 731, WD731, ADG6661DW, AKB41301B, AWG 180, AWG 180 WH, AWG 189 1/BR, AWG 335/1 W, AWG 335/3 WH, AWG 996 W, AWG 997 W, AWG180/1W AWG 180/1/WH, AWG1801WAWG1801WH, AWG180WH, AWG185 AWG 185 PH, AWG185AWG185PH, AWG186 AWG 186 PH, AWG187 AWG 187 PH, AWG187AWG187PH, AWG188 AWG 188 PH, AWG188AWG188PH, AWG189/1BR AWG 189 BR/01, AWG189/1WH AWG 189 WH/01, AWG1891BR, AWG1891BRAWG189BR01, AWG1891WHAWG189WH01, AWG3351W, AWG3353WH, AWG996W, AWG997 AWG 997 W, AWG997AWG997W, AWG997W, AWL 500, AWL500, AWG 154, AWG 175, AWG 175/4, AWG 180/1/WP, AWG 181 AWG 3300, AWG 181/1 AWG 3300, AWG 181/3, AWG 181/4, AWG 183 WH, AWG 183-WP, AWG 186, AWG 189 1/BR, AWG 189 BR, AWG 195, AWG 195 WH, AWG 303, AWG 305 HK, AWG 305 OS, AWG 310/3, AWG 311, AWG 320 BR, AWG 320 WH, AWG 320 WP, AWG 320 WP-4 UK, AWG 320 WP-4 UK, AWG 320-1 W, AWG 320/BR-W-2, AWG 320/BR/1, AWG 320/BR/3, AWG 320/BR/WP, AWG 320/WP-W-2, AWG 320/WP/1, AWG 320/WP/3, AWG 320/WP/4, AWG 3200, AWG 3200-1/AVS 150-2, AWG 3200/AVS 150-1, AWG 327 W, AWG 327/3, AWG 327/3 WP, AWG 327/4, AWG 327/5, AWG 331/3, AWG 335, AWG 335 3WP, AWG 335 4WP, AWG 335-3 WP, AWG 335-4 B, AWG 335-WH F, AWG 335-WP AWG 335/3 WP, AWG 335/3, AWG 335/3 AWG 335/3 WH, AWG 335/3 AWG 335/3 WH, AWG 335/3 WH, AWG 335/4 AWG 335-4 AWG 335-4 WP, AWG 335/4 WH, AWG 335/4 WP, AWG 336, AWG 336 WP, AWG 336/1, AWG 336/1, AWG 336/2, AWG 337, AWG 337 RA, AWG 337 WP, AWG 338, AWG 338, AWG 338, AWG 338, AWG 338, AWG 338 A, AWG 338 B, AWG 338 B, AWG 338 F, AWG 338 I, AWG 338 P-E, AWG 338 UK, AWG 338/3, AWG 338/3, AWG 338/4, AWG 338/C1, AWG 339, AWG 339, AWG 339/2, AWG 339/SS, AWG 340/1, AWG 340/3, AWG 340/3, AWG 340/4, AWG 340/4, AWG 340/4, AWG 3800 HK, AWG 837, AWG 838-3, AWG 838/3, AWG 839, AWG 848, AWG 989, AWG 989 HK, AWG 995 WH, AWG 995-1, AWG 995/1, AWG 995/2, AWG154, AWG1753WASHERDRYERSWP, AWG1754WASHERDRYERSWP, AWG1801WP, AWG1811AWG3300WASHERDRYERSWP, AWG1813, AWG1814WASHERDRYERSWP, AWG183WP, AWG186, AWG186, AWG189/1WH/WP AWG 189-1W-WP, AWG1891BR, AWG1891BR, AWG1891WHWPAWG1891WWP, AWG189BR, AWG189WH-UK AWG 189 WH, AWG195, AWG195WH, AWG303, AWG305WASHERDRYERSWP, AWG3103, AWG311WASHERDRYERSWP, AWG3200, AWG32001AWS150WASHERDRYERSWP, AWG3200AVS1501, AWG3201WWASHERDRYERSWP, AWG320BR, AWG320BR1, AWG320BR3WASHERDRYERSWP, AWG320BRW2, AWG320BRWP, AWG320WH, AWG320WP1, AWG320WP3WASHERDRYERSWP, AWG320WP4, AWG320WP4, AWG320WP4, AWG320WPW2, AWG3273, AWG3273WP, AWG3274, AWG3275, AWG327W, AWG331WASHERDRYERSWP, AWG335, AWG3353, AWG3353AWG3353WH, AWG3353AWG3353WH, AWG3353WH, AWG3353WP, AWG3353WP, AWG3354AWG3354AWG3354WP, AWG3354WH, AWG3354WP, AWG3354WP, AWG3354WP, AWG335WHF, AWG335WPAWG3353WP, AWG336, AWG3361, AWG3361, AWG3362WASHERDRYERSWP, AWG336WP, AWG337, AWG337RA, AWG337WP, AWG338, AWG338, AWG338, AWG338, AWG338, AWG3383, AWG3383WASHERDRYERSWP, AWG338A, AWG338B, AWG338B, AWG338C1, AWG338F, AWG338I, AWG338PE, AWG338UK, AWG339, AWG339, AWG3392WASHERDRYERSWP, AWG3401, AWG3403, AWG3403WASHERDRYERSWP, AWG3404WASHERDRYERSWP, AWG3404WASHERDRYERSWP, AWG3404WASHERDRYERSWP, AWG3800WASHERDRYERSWP, AWG837, AWG8383, AWG8383, AWG839WASHERDRYERSWP, AWG848WASHERDRYERSWP, AWG989WASHERDRYERSWP, AWG995/WH/WP AWG 995/WP, AWG9951, AWG9951, AWG9952, AWG995WH, AWG995WHWPAWG995WP, AWG997/PH-GB AWG 997 PH, AWG997PHGBAWG997PH, AWZ 410, AWZ 410, AWZ 410, AWZ 410, AWZ 410, AWZ 410, AWZ 410, AWZ 410, AWZ 410 RA, AWZ 410 SA, AWZ 410 SA, AWZ 410-4 UK, AWZ 410-4 UK, AWZ 410-S, AWZ 410-S, AWZ 410/1 OS, AWZ 410/3, AWZ 410/4 UK, AWZ 410/D PL, AWZ 410/S UK, AWZ 412, AWZ 412, AWZ 412 F, AWZ 420, AWZ 420, AWZ 908, AWZ 930 HK, AWZ 930 S HK, AWZ 930IX HK, AWZ 931, AWZ410, AWZ410, AWZ410, AWZ410, AWZ410, AWZ4101, AWZ4103, AWZ4104, AWZ4104, AWZ4104WASHERDRYER, AWZ410D, AWZ410S, AWZ410S, AWZ410WASHERDRYER, AWZ410WASHERDRYERSWP, AWZ410WASHERDRYERSWP, AWZ410WASHERDRYERSWP, AWZ410WASHERDRYERSWP, AWZ412WASHERDRYERSWP, AWZ412WASHERDRYERSWP, AWZ412WASHERDRYERSWP, AWZ420, AWZ420, AWZ908WASHERDRYERSWP, AWZ930IXHK, AWZ930SWASHERDRYERSWP, AWZ930WASHERDRYERSWP, AWZ931WASHERDRYERSWP
